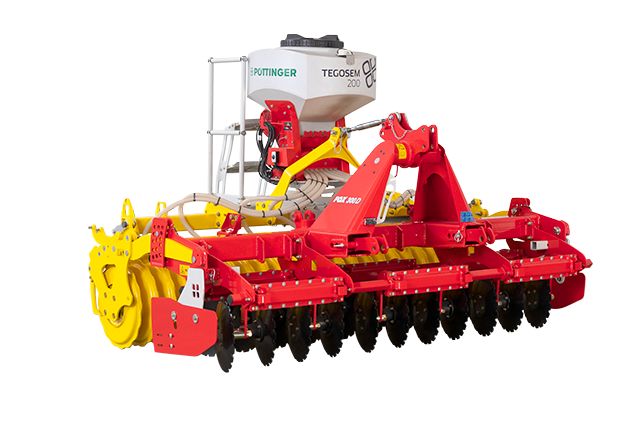

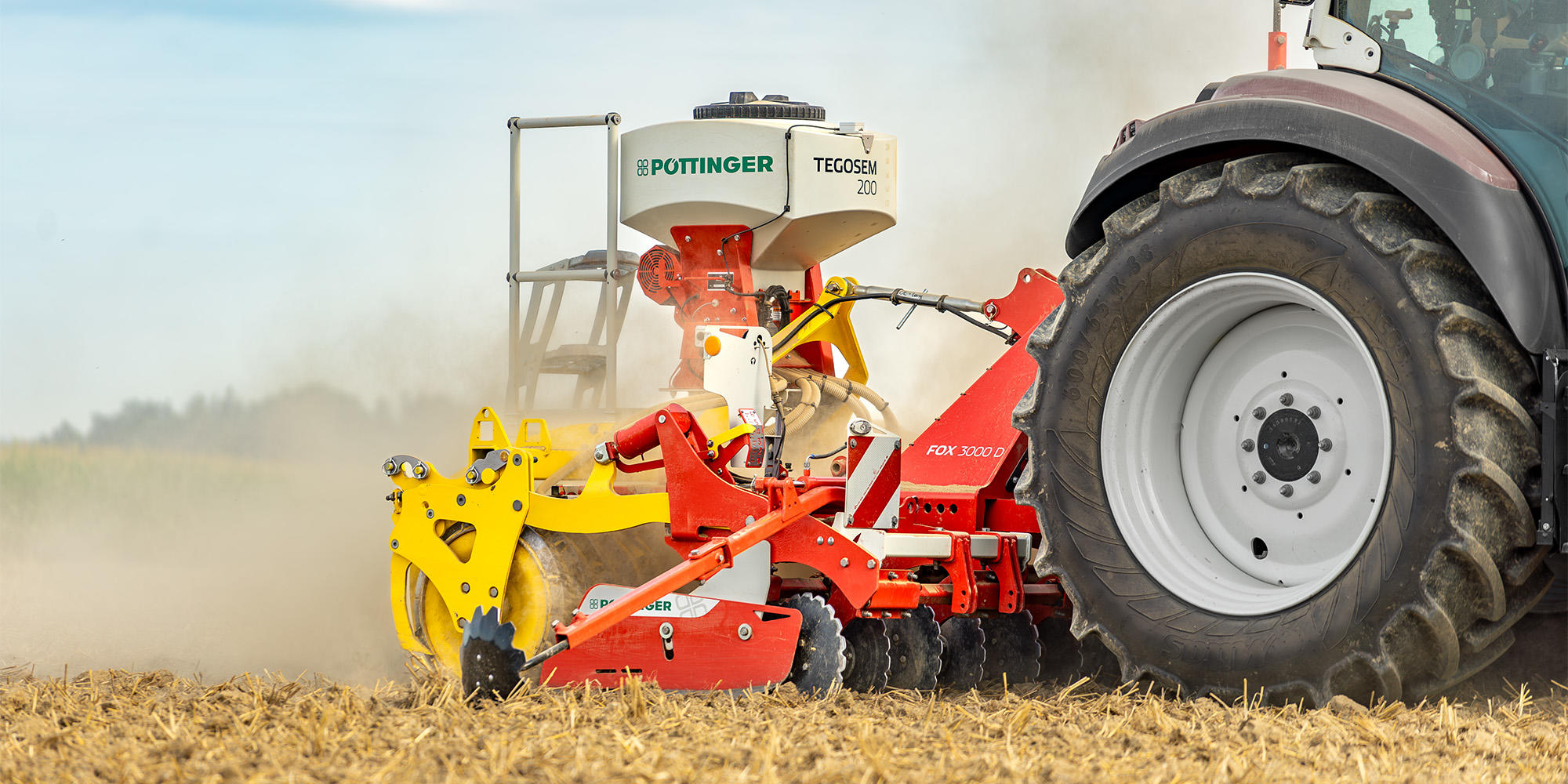

Short combinations with discs

Short combinations with discs

Videos


Technical data

 FOX 300 DFOX 350 DFOX 400 D
Working width3 m3,5 m4 m
Working depth3 - 8 cm3 - 8 cm3 - 8 cm
Under frame clearance475 mm475 mm475 mm
Gang spacing510 mm510 mm510 mm
Number of discs22 pcs.26 pcs.30 pcs.
Disc diameter410 410 410
Disc spacing13 cm13 cm13 cm
Power requirement75 HP90 HP100 HP
FOX 300 D
 FOX 300 D
Working width3 m
Working depth3 - 8 cm
Under frame clearance475 mm
Gang spacing510 mm
Number of discs22 pcs.
Disc diameter410
Disc spacing13 cm
Power requirement75 HP
FOX 350 D
 FOX 350 D
Working width3,5 m
Working depth3 - 8 cm
Under frame clearance475 mm
Gang spacing510 mm
Number of discs26 pcs.
Disc diameter410
Disc spacing13 cm
Power requirement90 HP
FOX 400 D
 FOX 400 D
Working width4 m
Working depth3 - 8 cm
Under frame clearance475 mm
Gang spacing510 mm
Number of discs30 pcs.
Disc diameter410
Disc spacing13 cm
Power requirement100 HP
Medien

Videos

Brochures

Image gallery

Qualität


Qualität

Quality

We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
