The best soil

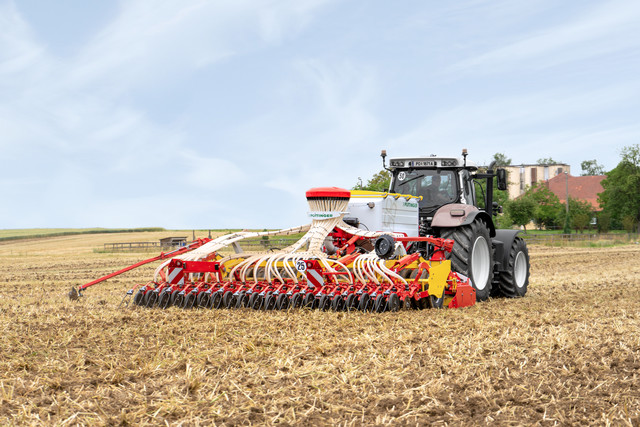

The trailed AEROSEM seed drill concept combined with active tillage from PÖTTINGER combines high output performance with flexibility. Soil conservation and perfect placement of the seed are the most important factors. We guarantee this with our precision universal metering system and ingenious, robust coulters. The newly developed trailed power harrow and seed drill system also offers us the possibility of sowing a mixture of components at the same time.
The trailed AEROSEM seed drill concept combined with active tillage from PÖTTINGER combines high output performance with flexibility. Soil conservation and perfect placement of the seed are the most important factors. We guarantee this with our precision universal metering system and ingenious, robust coulters. The newly developed trailed power harrow and seed drill system also offers us the possibility of sowing a mixture of components at the same time.
Customer benefits
Technology
Technical data
| AEROSEM VT 5000 DD | AEROSEM VT 6000 DD | ||||
|---|---|---|---|---|---|
| Working width | 5 m | 6 m | |||
| Row spacing | 12,5 cm | 12,5 cm | |||
| Volume of combo tank | 2800 l | 4600 l | |||
| Power requirement | 150 - 320 HP | 280 - 500 HP | |||
| Coulter pressure (Maximum) | 60 kg | 60 kg | |||
| Number of rotors LION | 20 pcs. | 20 pcs. | |||
| Length of machine | 7,5 m | 8 m | |||
| Transport width | 3 m | 3 m | |||
| Transport height | 2,9 m | 3,4 m | |||
| Number of rows | 40 pcs. | 48 pcs. | |||
| Press wheel diameter | 350 mm | 350 mm | |||
| Coulter disc diameter | 350 mm | 350 mm | |||
| Coulter spacing (Front to rear) | 30 cm | 30 cm | |||
| No. of centre press wheels | 10 pcs. | 12 pcs. | |||
| Partition for combo tank | 50:50 | 50:50 | |||
| Tine dimensions | 15 x 330 mm | 18 x 340 mm |
AEROSEM VT 5000 DD
| Working width | 5 m |
| Row spacing | 12,5 cm |
| Volume of combo tank | 2800 l |
| Power requirement | 150 - 320 HP |
| Coulter pressure (Maximum) | 60 kg |
| Number of rotors LION | 20 pcs. |
| Length of machine | 7,5 m |
| Transport width | 3 m |
| Transport height | 2,9 m |
| Number of rows | 40 pcs. |
| Press wheel diameter | 350 mm |
| Coulter disc diameter | 350 mm |
| Coulter spacing (Front to rear) | 30 cm |
| No. of centre press wheels | 10 pcs. |
| Partition for combo tank | 50:50 |
| Tine dimensions | 15 x 330 mm |
AEROSEM VT 6000 DD
| Working width | 6 m |
| Row spacing | 12,5 cm |
| Volume of combo tank | 4600 l |
| Power requirement | 280 - 500 HP |
| Coulter pressure (Maximum) | 60 kg |
| Number of rotors LION | 20 pcs. |
| Length of machine | 8 m |
| Transport width | 3 m |
| Transport height | 3,4 m |
| Number of rows | 48 pcs. |
| Press wheel diameter | 350 mm |
| Coulter disc diameter | 350 mm |
| Coulter spacing (Front to rear) | 30 cm |
| No. of centre press wheels | 12 pcs. |
| Partition for combo tank | 50:50 |
| Tine dimensions | 18 x 340 mm |
METERING WHEEL ASSIST
Choose the right metering wheel for your seed material simply by using METERING WHEEL ASSIST on your smartphone, tablet or PC. Get the new app from the App Store now (for iOS operating systems).
To the METERING WHEEL ASSIST app: https://www.poettinger.at/metering-wheel-assist/
To the iOS app: https://itunes.apple.com/de/app/p%C3%B6tsem/id1434048370?mt=8
TRAMLINE ASSIST
To set up the optimal tramline system, you need to synchronise your machinery. TRAMLINE ASSIST helps you to do this. When choosing your seed drill, parameters such as the working width of your crop care machines, track and tyre widths are critical for optimising tramlining. TRAMLINE ASSIST identifies the tramline rhythm for you, the position of the tramline rows, and the number of rows that need to be switched off.
www.mypoettinger.com/tramline-assist
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos

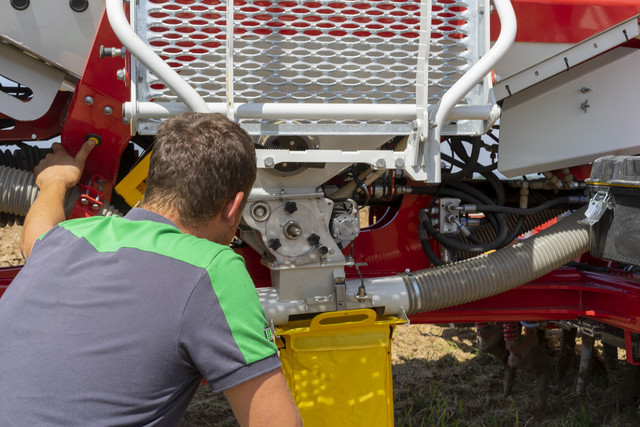

How-To: AEROSEM VT Calibration
AEROSEM VT 5000 trailed pneumatic seed drill combinations – Walkaround
Conserving the soil, compact and manoeuvrable, trailed seed drill combination AEROSEM VT
High output and versatile with the AEROSEM VT 6000 trailed seed drill combinations
AEROSEM VT - Your advantages
Brochures
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
