Technical data
| TERRADISC 4001 T | TERRADISC 5001 T | TERRADISC 6001 T | |||
|---|---|---|---|---|---|
| Working width | 4 m | 5 m | 6 m | ||
| Number of discs | 32 pcs. | 40 pcs. | 48 pcs. | ||
| Disc diameter | 58 cm | 58 cm | 58 cm | ||
| Spacing | 12,5 cm | 12,5 cm | 12,5 cm | ||
| Gang spacing | 90 cm | 90 cm | 90 cm | ||
| Power requirement | 135 HP | 155 HP | 180 HP | ||

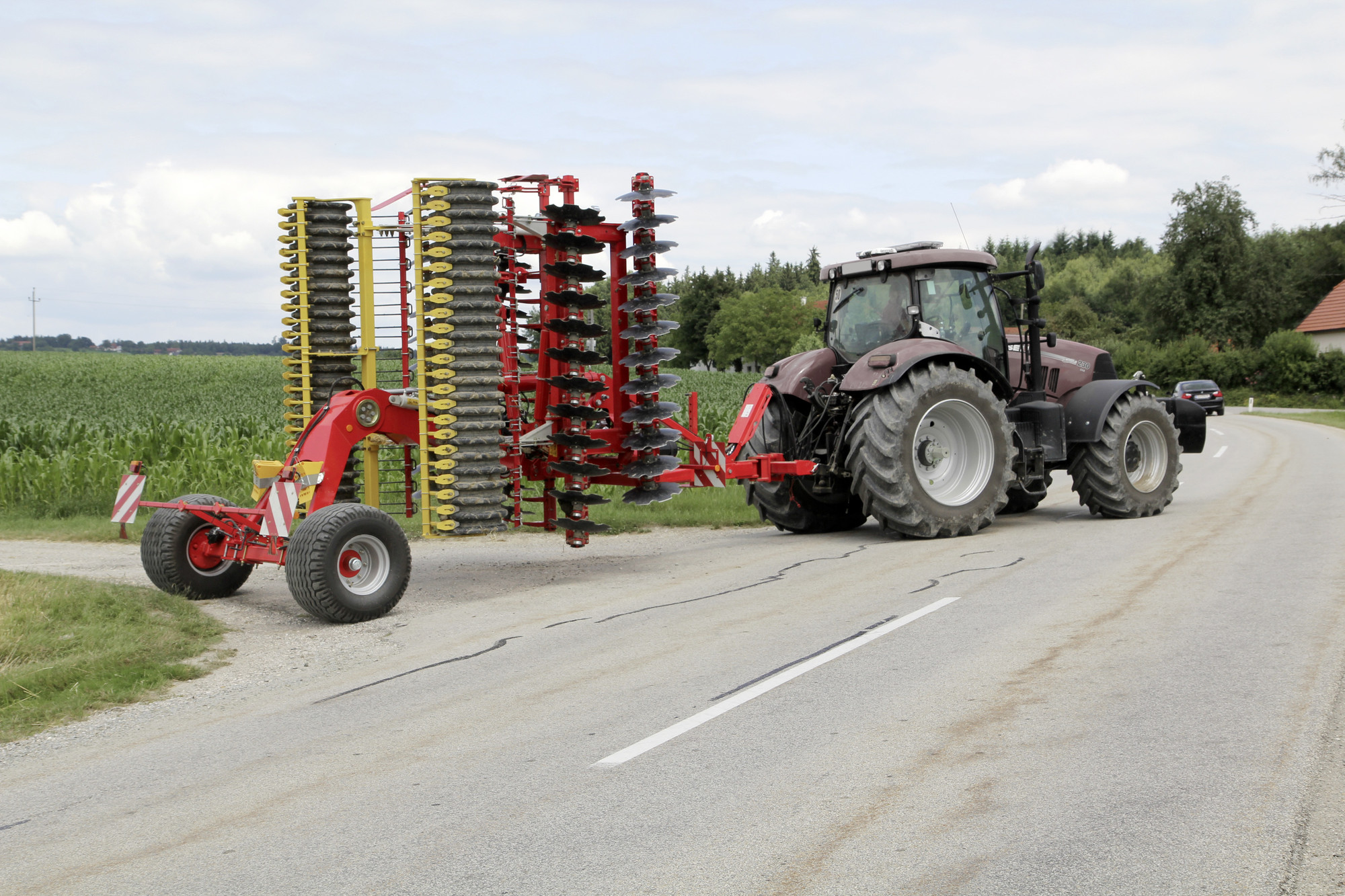

| Transport width | 2,8 m | 2,8 m | 2,8 m | ||
| Weight of basic version | 3765 kg | 4315 kg | 4740 kg | ||
| Weight cage roller Ø 660 mm | 610 kg | 766 kg | 850 kg | ||
| Weight double cage roller | 760 kg | 880 kg | 1040 kg | ||
| Weight pack ring roller Ø 550 mm | 820 kg | 1010 kg | 1190 kg | ||
| Weight rubber packer roller Ø 590 mm | - | 1000 kg | 1120 kg | ||
| Weight Tandem CONOROLL 560 mm | 950 kg | 1160 kg | 1370 kg | ||
| Weight tandem U-profile roller 600 mm Ø | 990 kg | 1170 kg | 1370 kg |
TERRADISC 4001 T
| Working width | 4 m |
| Number of discs | 32 pcs. |
| Disc diameter | 58 cm |
| Spacing | 12,5 cm |
| Gang spacing | 90 cm |
| Power requirement | 135 HP |
| Transport width | 2,8 m |
| Weight of basic version | 3765 kg |
| Weight cage roller Ø 660 mm | 610 kg |
| Weight double cage roller | 760 kg |
| Weight pack ring roller Ø 550 mm | 820 kg |
| Weight rubber packer roller Ø 590 mm | - |
| Weight Tandem CONOROLL 560 mm | 950 kg |
| Weight tandem U-profile roller 600 mm Ø | 990 kg |

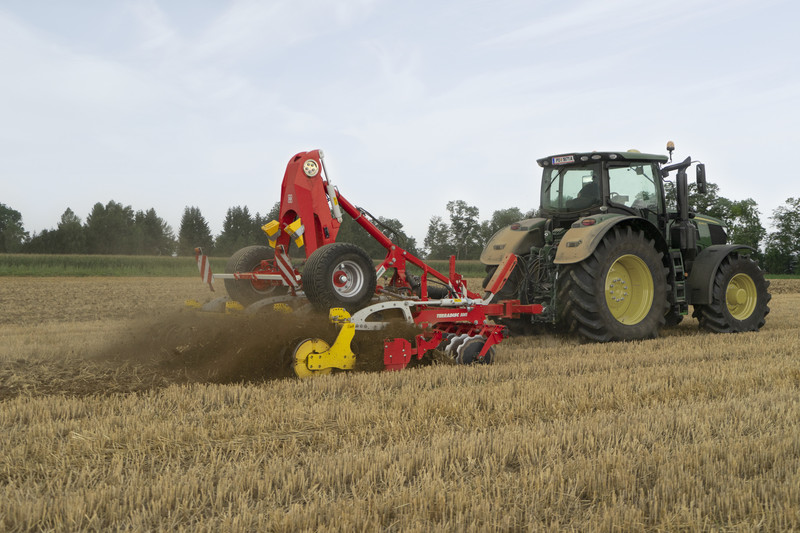

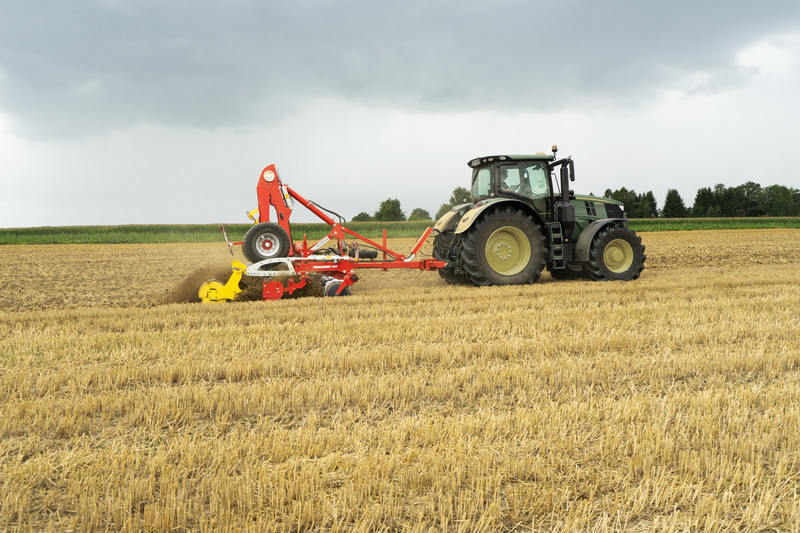

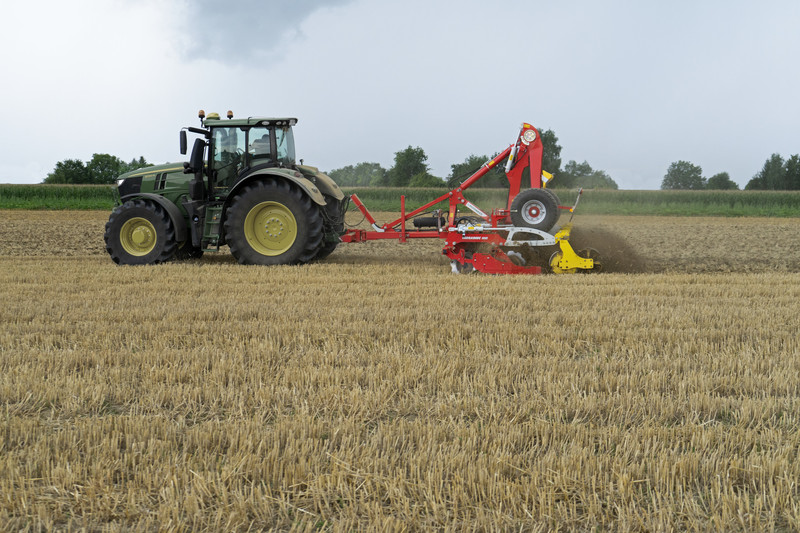

TERRADISC 5001 T
| Working width | 5 m |
| Number of discs | 40 pcs. |
| Disc diameter | 58 cm |
| Spacing | 12,5 cm |
| Gang spacing | 90 cm |
| Power requirement | 155 HP |
| Transport width | 2,8 m |
| Weight of basic version | 4315 kg |
| Weight cage roller Ø 660 mm | 766 kg |
| Weight double cage roller | 880 kg |
| Weight pack ring roller Ø 550 mm | 1010 kg |
| Weight rubber packer roller Ø 590 mm | 1000 kg |
| Weight Tandem CONOROLL 560 mm | 1160 kg |
| Weight tandem U-profile roller 600 mm Ø | 1170 kg |

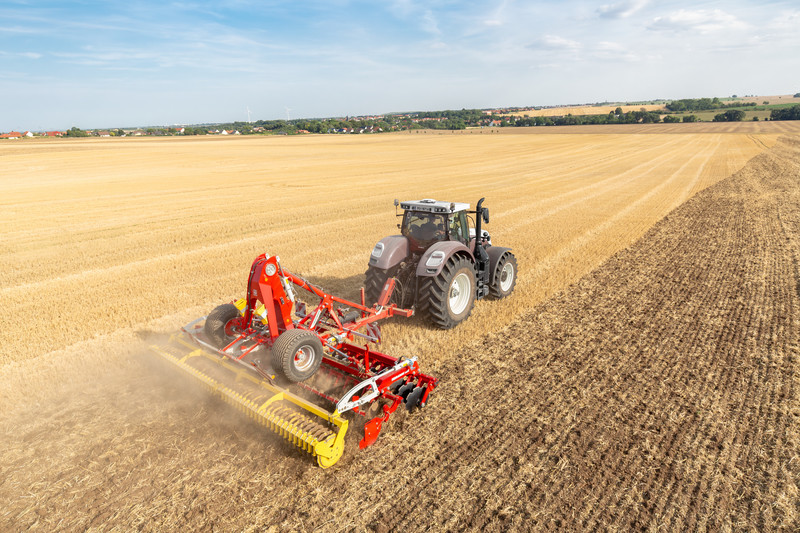

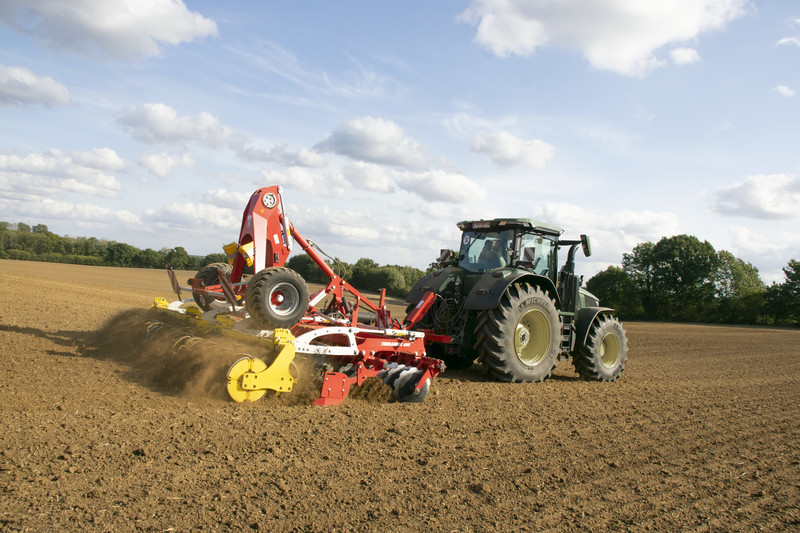

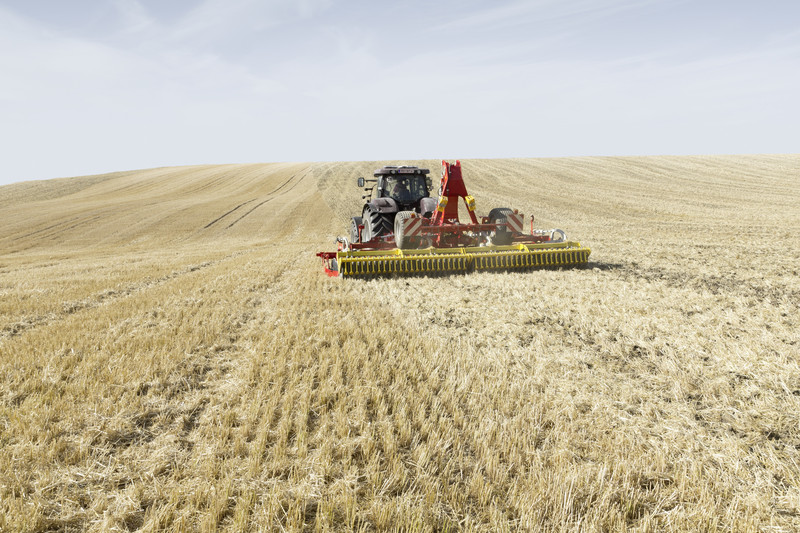

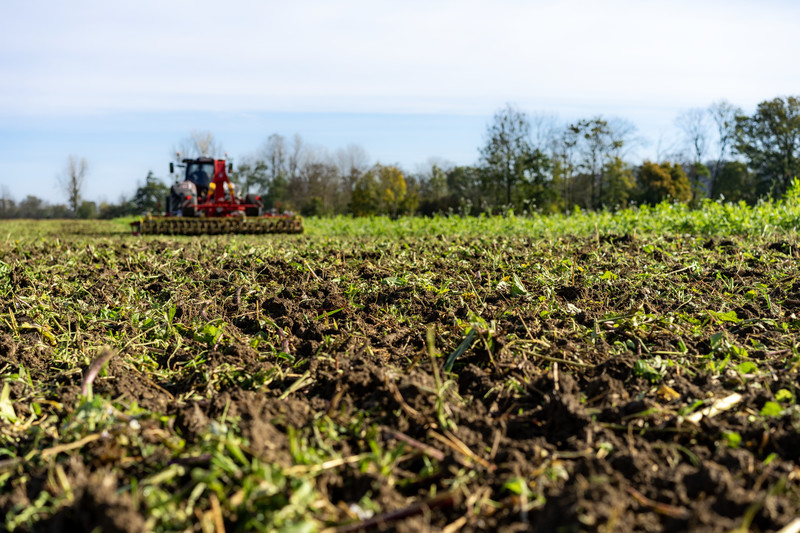

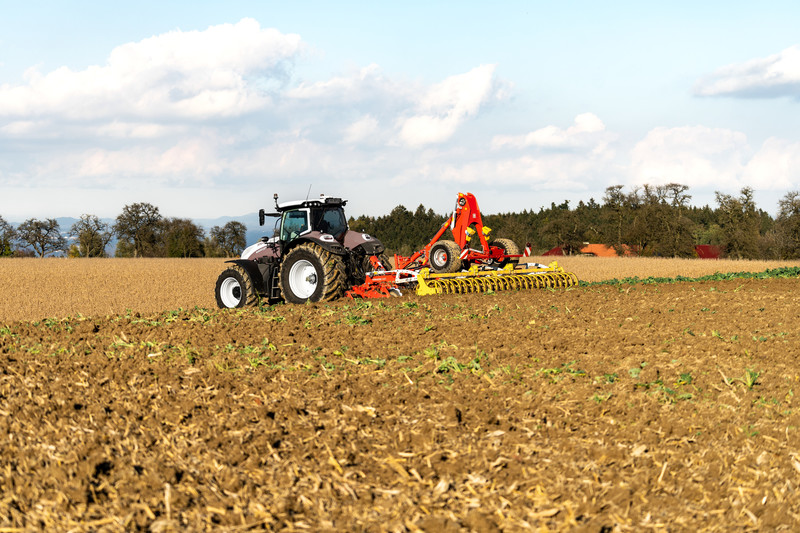

TERRADISC 6001 T
| Working width | 6 m |
| Number of discs | 48 pcs. |
| Disc diameter | 58 cm |
| Spacing | 12,5 cm |
| Gang spacing | 90 cm |
| Power requirement | 180 HP |
| Transport width | 2,8 m |
| Weight of basic version | 4740 kg |
| Weight cage roller Ø 660 mm | 850 kg |
| Weight double cage roller | 1040 kg |
| Weight pack ring roller Ø 550 mm | 1190 kg |
| Weight rubber packer roller Ø 590 mm | 1120 kg |
| Weight Tandem CONOROLL 560 mm | 1370 kg |
| Weight tandem U-profile roller 600 mm Ø | 1370 kg |
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos

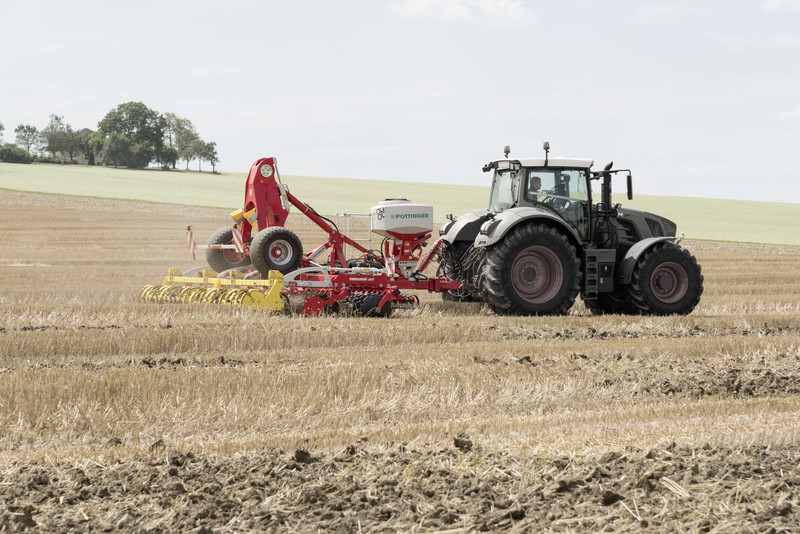

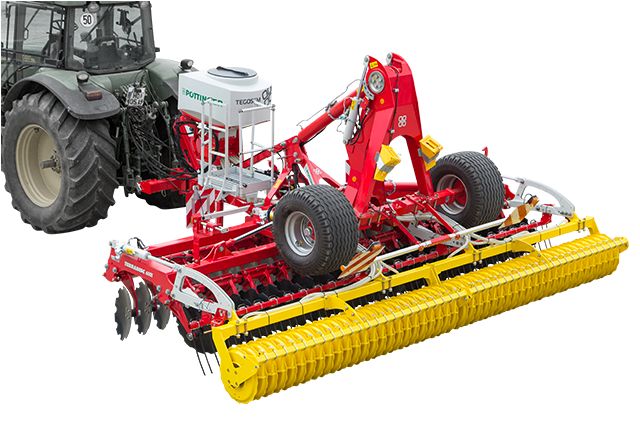

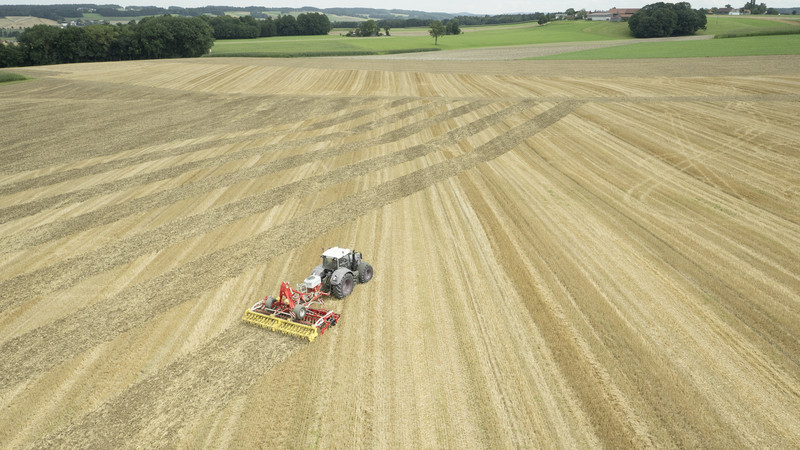

PÖTTINGER TERRADISC compact disc harrows with TEGOSEM catch crop system [en]
PÖTTINGER TEGOSEM catch crop sowing system [en]

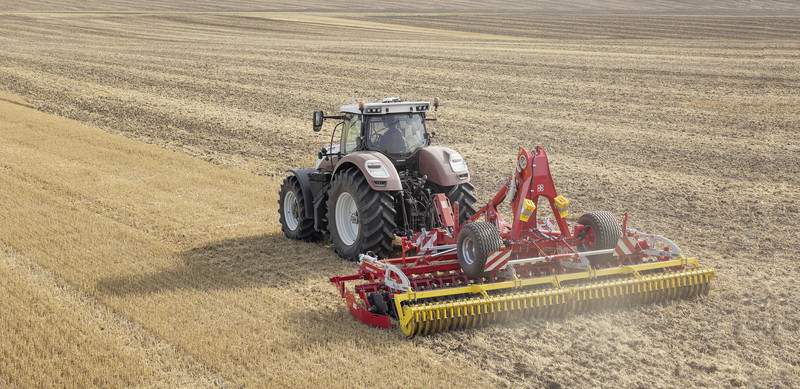

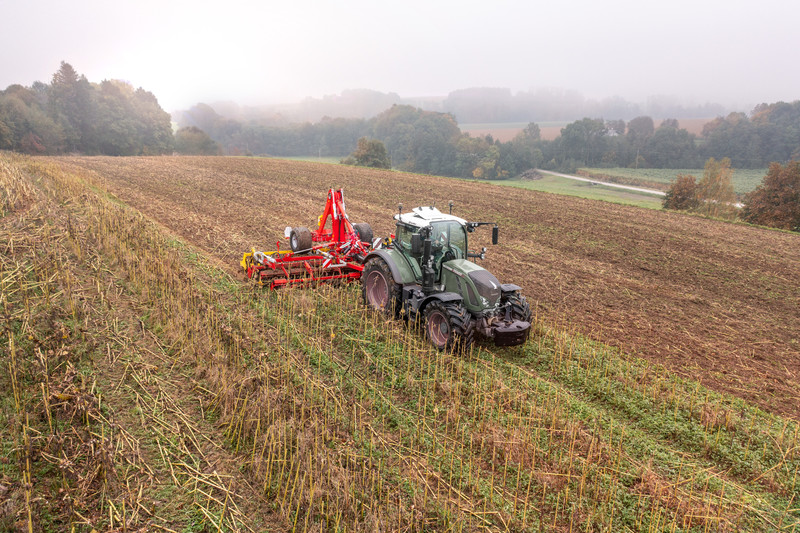

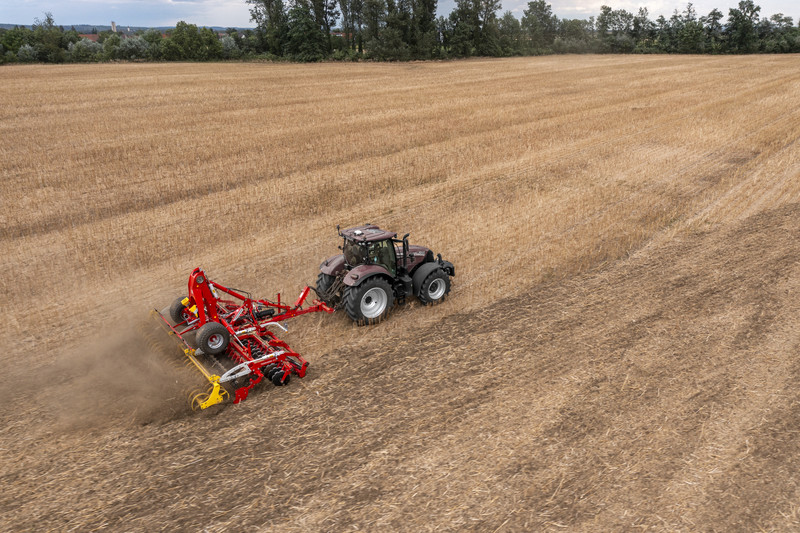

PÖTTINGER TERRADISC 6001 T disc harrows
TERRADISC disc harrows

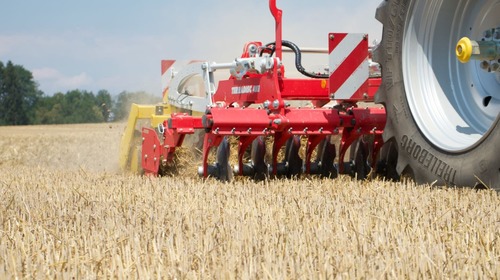

TERRADISC disc harrows - TWIN ARM, tough and reliable
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
